伊斯卡ISCAR  大进给铣刀 直径范围6-20mm 陶瓷铣刀



伊斯卡ISCAR 大进给铣刀 直径范围6-20mm 陶瓷铣刀

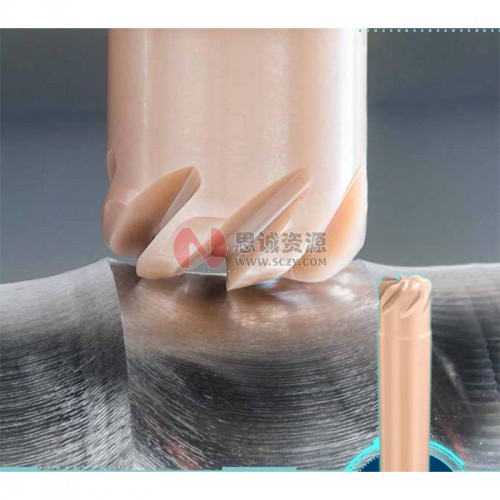

大进给整体陶瓷立铣刀,更高效、更高生产率。


EC-E3/E7-CE (ceramic)

带3个及7个有效切削刃的缩颈式整体陶瓷立铣刀

用于超级合金件、铸铁件及石墨件的加工

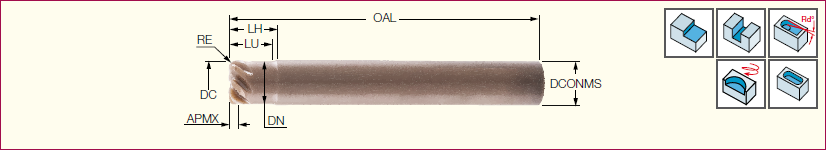

型号尺寸韧性↔耐磨性推荐切削参数
DCAPMXDNDCONMSRE(1)LUNOF(2)LHOALIS35IS6fz
(mm/t)
EC-E306-06/15C06R.4N50CE6.006.005.506.000.4214.5315.050.000.03-0.10
EC-E308-08/20C08R.5N57CE8.008.007.508.000.5619.5320.057.000.03-0.14
EC-E310-10/25C10R.7N65CE10.0010.009.5010.000.7024.5325.065.000.03-0.16
EC-E312-12/30C12R1.N72CE12.0012.0011.5012.001.1029.5330.072.000.03-0.18
EC-E316-16/35C16R2.N83CE16.0016.0015.5016.001.9034.5335.083.000.03-0.22
EC-E320-20/40C20R2.N93CE20.0020.0019.5020.002.5039.5340.093.000.03-0.24
EC-E708-02C08R1.0N63CE8.000.407.508.001.008.079.563.000.03-0.10
EC-E710-02C10R1.5N72CE10.000.709.5010.001.5010.0711.572.000.03-0.12
EC-E712-02C12R1.5N83CE12.001.3011.5012.001.5010.0712.083.000.03-0.15

*镍基高温超级合金件的推荐切削速度范围为:250-700 m/min

*带3个有效切削刃的铣刀,最大切宽为 0.1xD

(1)编程半径(2)有效齿数
