伊斯卡ISCAR 迷你五角霸王槽刀/切断刀 台肩
品牌：ISCAR(伊斯卡)
型号：G5BD0106C4ADB0
￥待询价（提交订单10分钟内获取专属报价单）

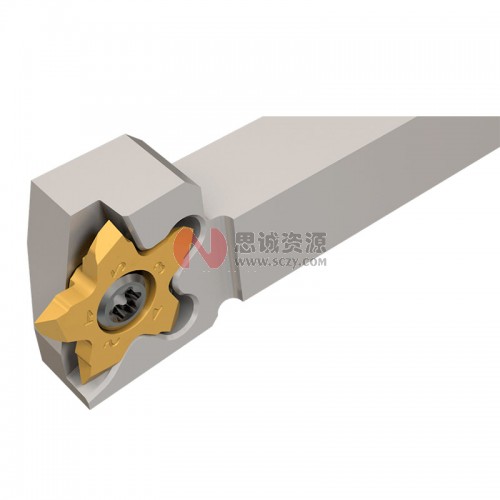

夹持五角霸王刀片的刀杆，用于切槽、切断以及紧邻深台肩的精整车

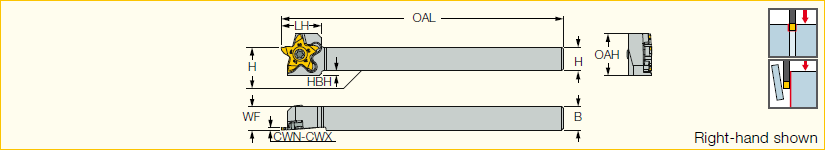

| 型号 | H | B | CWN(1) | CWX(2) | WF | OAL | LH | HBH | OAH |
| PCHR/LS 10-17 | 10.0 | 10.0 | 0.25 | 3.18 | 10.00 | 120.00 | 17.0 | 2.0 | 17.6 |
| PCHR/LS 12-17 | 12.0 | 12.0 | 0.25 | 3.18 | 12.00 | 120.00 | 17.0 | - | 17.6 |
| PCHR/LS 16-17 | 16.0 | 16.0 | 0.25 | 3.18 | 16.00 | 120.00 | 17.0 | - | 21.6 |
| PCHR/LS 20-17 | 20.0 | 20.0 | 0.25 | 3.18 | 20.00 | 120.00 | 17.0 | - | 25.6 |
（1）最小切宽
（2）最大切宽

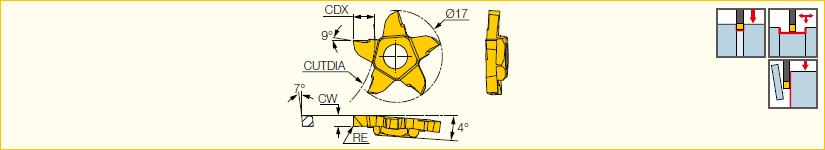

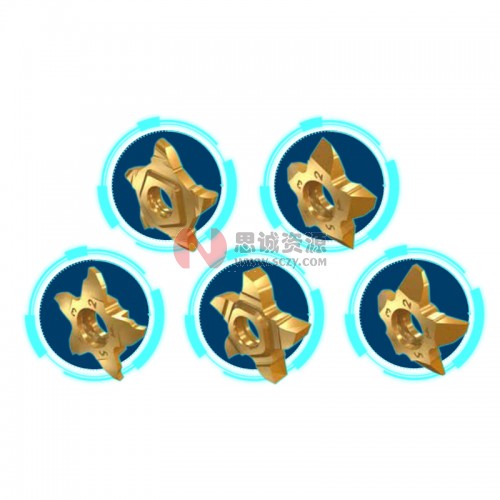

PENTA 17-P-RS/LS
带5个切削刃的刀片，用于软质金属材料，薄壁件及小零件的切断、切槽加工
| 型号 | 尺寸 | IC1008 | 推荐切削参数 f 切槽 (mm/rev) |
||||
| CW | RE | CDX | CUTDIA | ||||
| PENTA | 17N025P000R/LS | 0.25 | 0.00 | 0.60 | 1.2 | • | 0.02-0.03 |
| PENTA | 17N030P000R/LS | 0.30 | 0.00 | 0.60 | 1.2 | • | 0.02-0.03 |
| PENTA | 17N033P000R/LS | 0.33 | 0.00 | 0.60 | 1.2 | • | 0.02-0.03 |
| PENTA | 17N043P000R/LS | 0.43 | 0.00 | 1.00 | 2.0 | • | 0.02-0.04 |
| PENTA | 17N050P000R/LS | 0.50 | 0.00 | 2.00 | 4.0 | • | 0.02-0.04 |
| PENTA | 17N075P000R/LS | 0.75 | 0.00 | 2.50 | 5.0 | • | 0.02-0.04 |
| PENTA | 17N080P000R/LS | 0.80 | 0.00 | 2.50 | 5.0 | • | 0.02-0.04 |
| PENTA | 17N095P000R/LS | 0.95 | 0.00 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA | 17N100P010R/LS | 1.00 | 0.10 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA | 17N100P050R/LS | 1.00 | 0.50 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA | 17N120P010R/LS | 1.20 | 0.10 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA | 17N140P010R/LS | 1.40 | 0.10 | 3.00 | 6.0 | • | 0.02-0.05 |
| PENTA | 17N150P010R/LS | 1.50 | 0.10 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA | 17N157P010R/LS | 1.57 | 0.10 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA | 17N157P079R/LS | 1.57 | 0.79 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA | 17N170P010R/LS | 1.70 | 0.10 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA | 17N178P010R/LS | 1.78 | 0.10 | 4.00 | 8.0 | • | 0.02-0.07 |
| PENTA | 17N196P010R/LS | 1.96 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N200P010R/LS | 2.00 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N200P100R/LS | 2.00 | 1.00 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N222P010R/LS | 2.22 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N230P010R/LS | 2.30 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N239P010R/LS | 2.39 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N239P120R/LS | 2.39 | 1.20 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N247P010R/LS | 2.47 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N250P010R/LS | 2.50 | 0.10 | 4.00 | 8.0 | • | 0.02-0.08 |
| PENTA | 17N270P010R/LS | 2.70 | 0.10 | 4.00 | 8.0 | • | 0.02-0.09 |
| PENTA | 17N287P010R/LS | 2.87 | 0.10 | 4.00 | 8.0 | • | 0.02-0.10 |
| PENTA | 17N300P010R/LS | 3.00 | 0.10 | 4.00 | 8.0 | • | 0.02-0.10 |
| PENTA | 17N318P010R/LS | 3.18 | 0.10 | 4.00 | 8.0 | • | 0.02-0.10 |

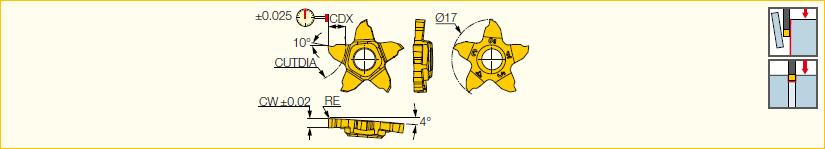

PENTA 17N...P...RS/LS - 高精度切槽 & 切断刀片

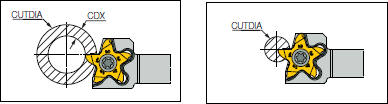

| 型号 | CW±0.02 | RE | CDX | 依据工件直径（CUTDIA）确定切深（CDX） | 棒料切断直径 CUTDIA |
|||||
| CDX≤2.3 | CDX≤2.5 | CDX≤3.0 | CDX≤3.5 | CDX≤3.8 | CDX≤4.0 | |||||
| PENTA 17N025P000RS/LS | 0.25 | 0.00 | 0.6* | - | - | - | - | - | - | |
| PENTA 17N030P000RS/LS | 0.30 | 0.00 | 0.6* | - | - | - | - | - | - | |
| PENTA 17N033P000RS/LS | 0.30 | 0.00 | 0.6* | - | - | - | - | - | - | |
| PENTA 17N043P000RS/LS | 0.43 | 0.00 | 1.0* | - | - | - | - | - | - | |
| PENTA 17N050P000RS/LS | 0.50 | 0.00 | 2.0* | - | - | - | - | - | - | 4 |
| PENTA 17N075P000RS/LS | 0.75 | 0.00 | 2.5 | N.L. | 400 | - | - | - | - | 5 |
| PENTA 17N080P000RS/LS | 0.80 | 0.00 | 2.5 | N.L. | - | - | - | - | ||
| PENTA 17N095P000RS/LS | 0.95 | 0.00 | 3.0 | N.L. | 100 | - | - | - | 6 | |
| PENTA 17N100P010RS/LS | 1.00 | 0.10 | N.L. | - | - | - | ||||
| PENTA 17N100P050RS/LS | 1.00 | 0.50 | N.L. | - | - | - | ||||
| PENTA 17N120P010RS/LS | 1.20 | 0.10 | N.L. | - | - | - | ||||
| PENTA 17N140P010RS/LS | 1.40 | 0.10 | N.L. | - | - | - | ||||
| PENTA 17N150P010RS/LS | 1.50 | 0.10 | 4.0 | N.L. | 400 | 100 | 55 | 32 | 20 | |
| PENTA 17N157P010RS/LS | 1.57 | 0.10 | N.L. | |||||||
| PENTA 17N157P079RS/LS | 1.57 | 0.79 | N.L. | |||||||
| PENTA 17N170P010RS/LS | 1.70 | 0.10 | N.L. | |||||||
| PENTA 17N178P010RS/LS | 1.78 | 0.10 | N.L. | |||||||
| PENTA 17N196P010RS/LS | 1.96 | 0.10 | N.L. | |||||||
| PENTA 17N200P010RS/LS | 2.00 | 0.10 | N.L. | |||||||
| PENTA 17N200P100RS/LS | 2.00 | 1.00 | N.L. | |||||||
| PENTA 17N222P010RS/LS | 2.22 | 0.10 | N.L. | |||||||
| PENTA 17N230P010RS/LS | 2.30 | 0.10 | N.L. | |||||||
| PENTA 17N239P010RS/LS | 2.39 | 0.10 | N.L. | |||||||
| PENTA 17N239P120RS/LS | 2.39 | 1.20 | N.L. | |||||||
| PENTA 17N247P010RS/LS | 2.47 | 0.10 | N.L. | |||||||
| PENTA 17N250P010RS/LS | 2.50 | 0.10 | N.L. | |||||||
| PENTA 17N270P010RS/LS | 2.70 | 0.10 | N.L. | |||||||
| PENTA 17N287P010RS/LS | 2.87 | 0.10 | N.L. | |||||||
| PENTA 17N300P010RS/LS | 3.00 | 0.10 | N.L. | |||||||
| PENTA 17N318P010RS/LS | 3.18 | 0.10 | N.L. | 400 | 100 | 55 | 32 | 25 | ||
* N.L=无限制
PENTA 17-NP-RS/LS
五角霸王刀用于紧邻深台肩的高精度切槽及车削
| 型号 | 尺寸 | IC1008 | 推荐切削参数 | ||||||
| CW | RE | CDX | CUTDIA | ap (mm) | f 车削 (mm/rev) | f 切槽 (mm/rev) |
|||
| PENTA | 17-100NP08R/LS | 1.00 | 0.08 | 3.00 | 32.0 | • | 0.05-0.70 | 0.02-0.06 | 0.03-0.06 |
| PENTA | 17-200NP08R/LS | 2.00 | 0.08 | 4.00 | 32.0 | • | 0.05-2.50 | 0.05-0.15 | 0.05-0.09 |
| PENTA | 17-300NP08R/LS | 3.00 | 0.08 | 4.00 | 32.0 | • | 0.05-3.10 | 0.05-0.19 | 0.05-0.11 |
* 当用刀片断屑槽的反方向进行车削时，最大切削深度为0.5mm
| 型号 | 尺寸 | 最大切槽深度Tmax需根据工件直径Dmax确定 | |||||||
| W | R | Tmax-r | T≤2.5 | T≤3.0 | T≤3.5 | T≤3.8 | T≤4.0 | ||
| PENTA | 17-100NP08-L/RS | 1.00 | 0.08 | 3.00 | N.L. | 100 | - | - | - |
| PENTA | 17-200NP08-L/RS | 2.00 | 0.08 | 4.00 | N.L. | 100 | 75 | 45 | 32 |
| PENTA | 17-300NP08-L/RS | 3.00 | 0.08 | 4.00 | N.L. | 100 | 75 | 45 | 32 |
（1） N.L - 无限制
PENTA 17-ER/EL

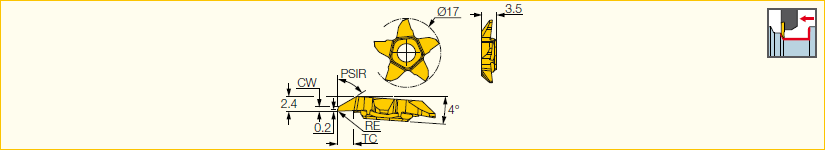

背车五角刀片，用于短切屑材料的加工
| 型号 | 尺寸 | IC1008 | 推荐切削参数 | |||||
| CW | RE | PSIR | Tc | ap (mm) | f 车削 (mm/rev) |
|||
| PENTA | 17EL00-07K0LS | 0.70 | 0.00 | 60.0 | 4.0 | • | 0.05-2.50 | 0.01-0.15 |
| PENTA | 17ER00-07K0RS | 0.70 | 0.00 | 60.0 | 4.0 | • | 0.05-2.50 | 0.01-0.15 |
| PENTA | 17EL08-07K0LS | 0.70 | 0.80 | 60.0 | 4.0 | • | 0.05-2.50 | 0.01-0.15 |
| PENTA | 17ER08-07K0RS | 0.70 | 0.80 | 60.0 | 4.0 | • | 0.05-2.50 | 0.01-0.15 |

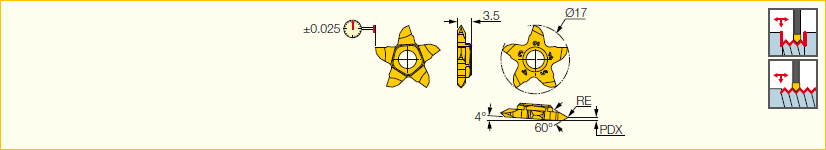

PENTA 17-MT-RS/LS
精密磨制，60°通用型牙形外螺纹刀片，带5个切削刃
| 型号 | 尺寸 | IC1008 | |||
| TPN(1) | TPX(2) | RE | PDX | ||
| PENTA 17-MTL003LS | 0.30 | 1.75 | 0.03 | 0.8 | • |
| PENTA 17-MTR003RS | 0.30 | 1.75 | 0.03 | 0.8 | • |
| PENTA 17-MTL008LS | 0.70 | 3.50 | 0.08 | 1.4 | • |
| PENTA 17-MTR008RS | 0.70 | 3.50 | 0.08 | 1.4 | • |
（1）最小螺距（mm）
（2）最大螺距（mm）

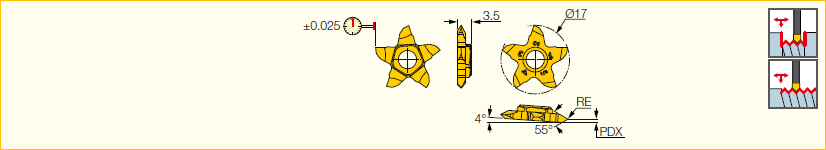

PENTA 17-WT-RS/LS
精密磨制，55°通用型牙形外螺纹刀片，带5个切削刃
| 型号 | 尺寸 | IC1008 | |||
| TPIX(1) | TPIN(2) | RE | PDX | ||
| PENTA 17-WTL003LS | 72.00 | 17.00 | 0.03 | 0.8 | • |
| PENTA 17-WTR003RS | 72.00 | 17.00 | 0.03 | 0.8 | • |
| PENTA 17-WTL008LS | 31.00 | 7.00 | 0.08 | 1.4 | • |
| PENTA 17-WTR008RS | 31.00 | 7.00 | 0.08 | 1.4 | • |
（1）每英寸最大螺纹牙数
（2）每英寸最小螺纹牙数
