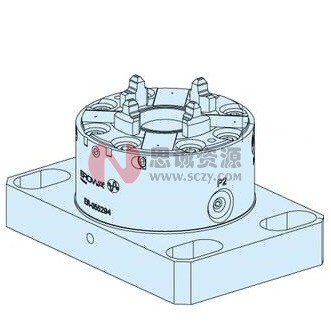

EROWA夹具气动卡盘ER-055294






EROWA ITS卡盘,气动,工件台用,自动操作,INOX
ER-055294 EROWA ITS卡盘50 INOX 带底板80×120
规 格:系统尺寸50,防腐蚀
夹持力:2800N
联接:用4个M8螺钉从前面.
应用:用于铣床,磨床,电火花或线切割机床。
注意:卡盘可以手动或者自动操作,气管接头在侧面。
ER-055294 ITS chuck 50 INOX with base plate 80×120
Version: System size 50,corrosion-resistant.
Clamping power: 2800N.
To be fitted: with 4×M8 bolts from the front.
Application: On miling and grinding machines and on EDM/WEDM centers.
Note:Chuck can be operated manually or automatically.pneumatic connections on the side of the chuck.
