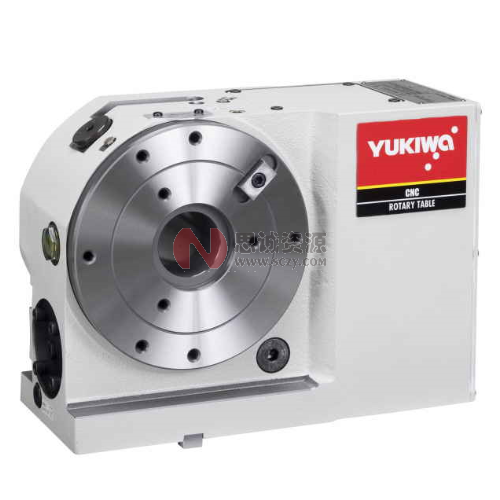

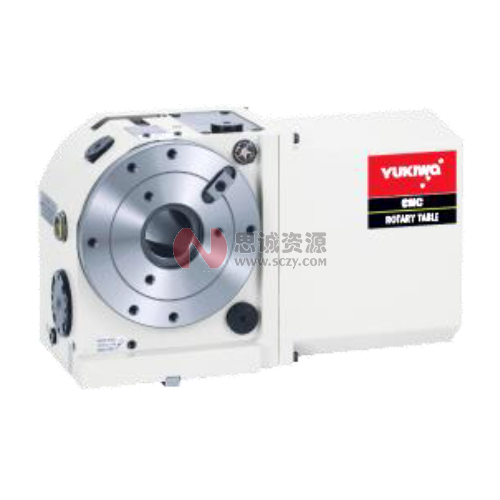

日本YUKIWA CNC回转工作台 CNC转台 CNC第四轴 EC-JNC(H) 140.170.200.250
 | 低成本、高性能型
Low-cost, high-performance models !
JNC(H) 140.170.200.250
・小型轻量,可扩大加工中心的作业区域。使用方便的标准型回转工作台。
Compact size and light-weight secures a larger working area. Standard models of rotary tables for simple use.
・JNCH系列为高速型,可提高生产率。
JNCH series are high-speed indexing models and productivity is improved.
|
 | 高品质、高性能型
High-grade, high-performance models!
YNC(P) 170.200
・采用大直径轴承支承工作台的前后部位,拥有该级别最大的刚性。
Highest rigidity in this class, with large-size bearing supports.
・采用强力夹紧机构,具有该级别最大的夹紧扭矩。
Highest clamping torque in this class, with powerful clamp system.
・YNCP系列的夹紧力更大。YNCP200为850N。
YNCP series have a higher clamping torque. 850N・m for YNCP200.
|
| JNC140
| JNC170
JNCH170
| JNC200
JNCH200
| JNC250

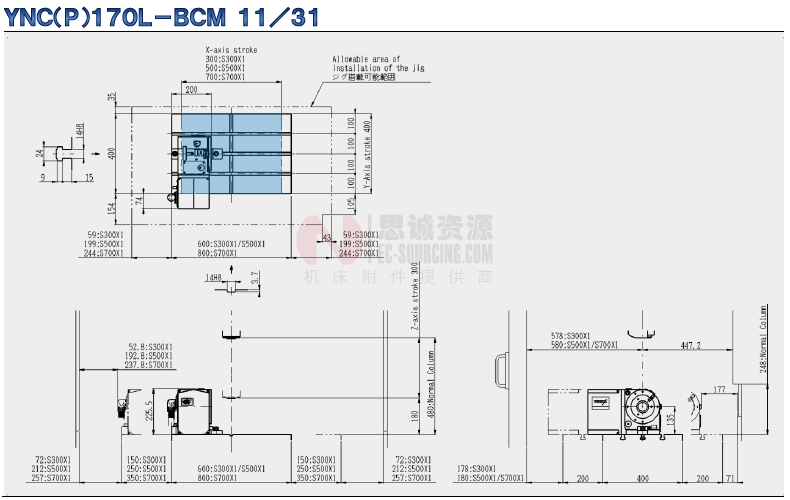

| YNC170
YNCP170
| YNC200
YNCP200
|
工作台直径
Table diameter
| mm
| 140
| 170
| 200
| 250
| 170
| 200
|
中心高
Table center height
| mm
| 110
| 135
| 160
| 200
| 135
| 160
|
嵌合部孔径
Table faucet diameter
| mm
| 40H7
| 60H7
| 70H7
| 90H7
| 60H7
| 70H7
|
贯通孔径
Table Through hole diameter
| mm
| 28
| 45
| 56
| 72
| 45
| 56
|
夹紧方式
Clamp system
| MPa
| 气圧0.5〜0.7
Pneumatic 0.5〜0.7
| 气圧 0.5~0.7
Pneumatic 0.5〜0.7
<气圧0.3〜0.5>
<Pneumatic 0.3〜0.5>
|
夹紧扭矩
Clamp torque
| N-m
| 120
| 230
| 450
| 650
| 260
<550>
| 540
<850>
|
容许工作负荷
Allowable operating load
(N)
| 垂直
Vertical
| 4,000
| 5,000
| 7,000
| 8,000
| 9,000
| 10,000
|
水平
Horizontal
| 2,000
| 3,000
| 4,000
| 5,000
| 3,000
<4,000>
| 6,000
|
圆周
Circumference
| 2,000
| 1,700
| 2,600
| 3,500
| 3,000
<4,000>
| 5,400
<6,200>
|
容许惯性矩
Allowable inertia
(kg-㎡)
| 垂直设置
Vertical use
| 0.25
| 0.5
[0.25]
| 1.0
[0.5]
| 2.0
| 0.5
| 1.0
|
水平设置
Horizontal use
| 0.125
| 0.25
[0.125]
| 0.5
[0.25]
| 1.0
| 0.25
| 0.5
|
总减速比
Total reduction ratio
|
| 1/72
| 1/90
[1/45]
| 1/90
| 1/90
|
最高转速
Max. rotation speed
| min*1
| 41.6
| 33.3
[66.6]
| 33.3
| 33.3
|
分度精度(累计)
Indexing accuracy
| 秒
second
| 40
| 40
| 40
| 30
| 30
| 25
|
产品质量
Product mass
| kg
| 27
| 38
| 58
| 58
| 43
| 69
|
价格
| 立即询价
| 立即询价
| 立即询价
| 立即询价
| 立即询价
| 立即询价
|
[ ]为高速旋转规格JNCH系列的规格值。 < >内为强力夹紧规格YNCP系列的规格值。
[ ]:High speed model JNCH series < >:High clamp torque model YNCP series

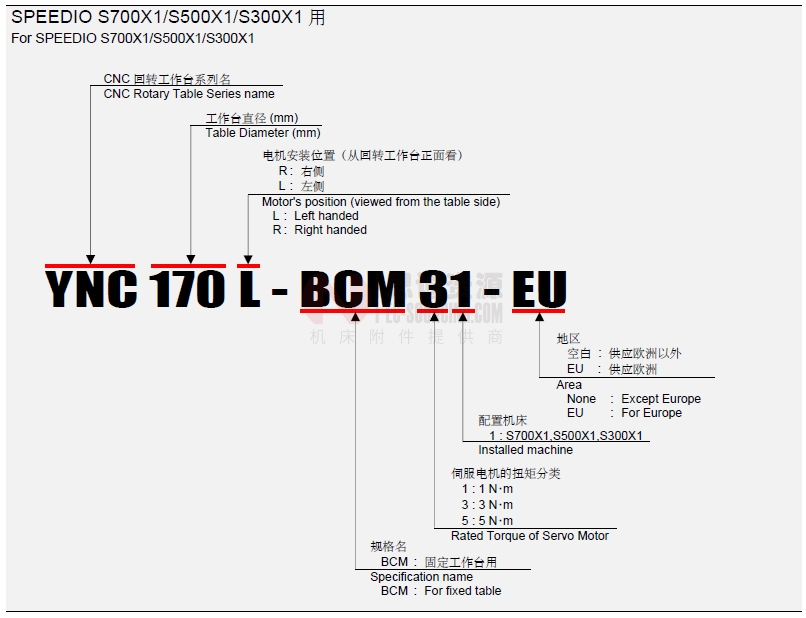

型号说明
Explanation on model Number

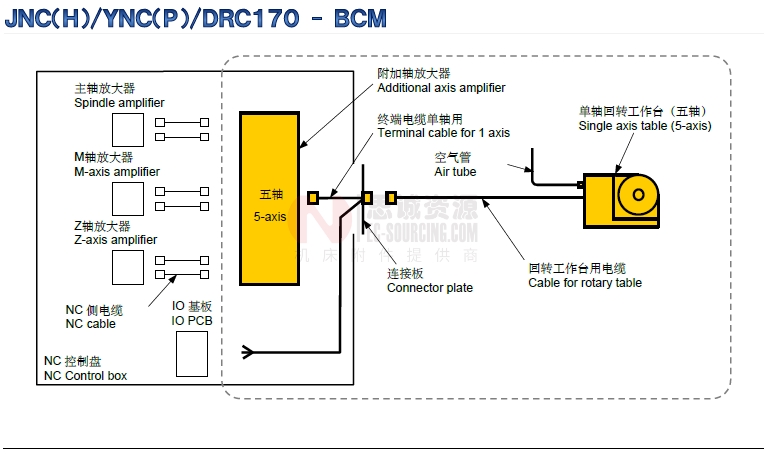

回转工作台的构成
Composition of CNC Rotary Table
